Robustel R2010e
Industrial 4G/LTE eSIM/eUICC Router with Serial & DI/DO
The Robustel R2010e is an industrial 4G/LTE router designed for dependable site connectivity with modern eSIM/eUICC flexibility. Based on the proven R2010 platform, it combines 1x physical SIM slot with an embedded eUICC, giving you dual-SIM redundancy while replacing the second plastic SIM with a remotely managed eSIM profile.
With eSIM/eUICC, you can download, activate, and switch operator profiles over the air – optimising coverage, roaming behaviour, and commercial terms without site visits or SIM swaps.
Running RobustOS (Linux-based) with a C/C++ SDK, the R2010e supports deep application customisation and a broad app catalogue for diverse IoT use cases. Security is comprehensive, with IPsec, OpenVPN, GRE and WireGuard, plus Web/CLI/SMS management and RCMS for fleet-wide monitoring, configuration, firmware updates and SIM profile changes at scale.
Built for harsh environments, the metal IP30 enclosure supports 9–36 V DC input and –35 to +75 °C operation, with desktop, wall or DIN-rail mounting. The result is a compact industrial router that pairs proven R2010 reliability with embedded eSIM/eUICC lifecycle management for smarter, lower-touch connectivity.
eSIM/eUICC Support
4G/LTE, 3G & 2G with Dual-SIM support for failover
PoE-PD (Optional)
Optional PoE-PD configuration on WAN for Ease of Install.
INTERFACES

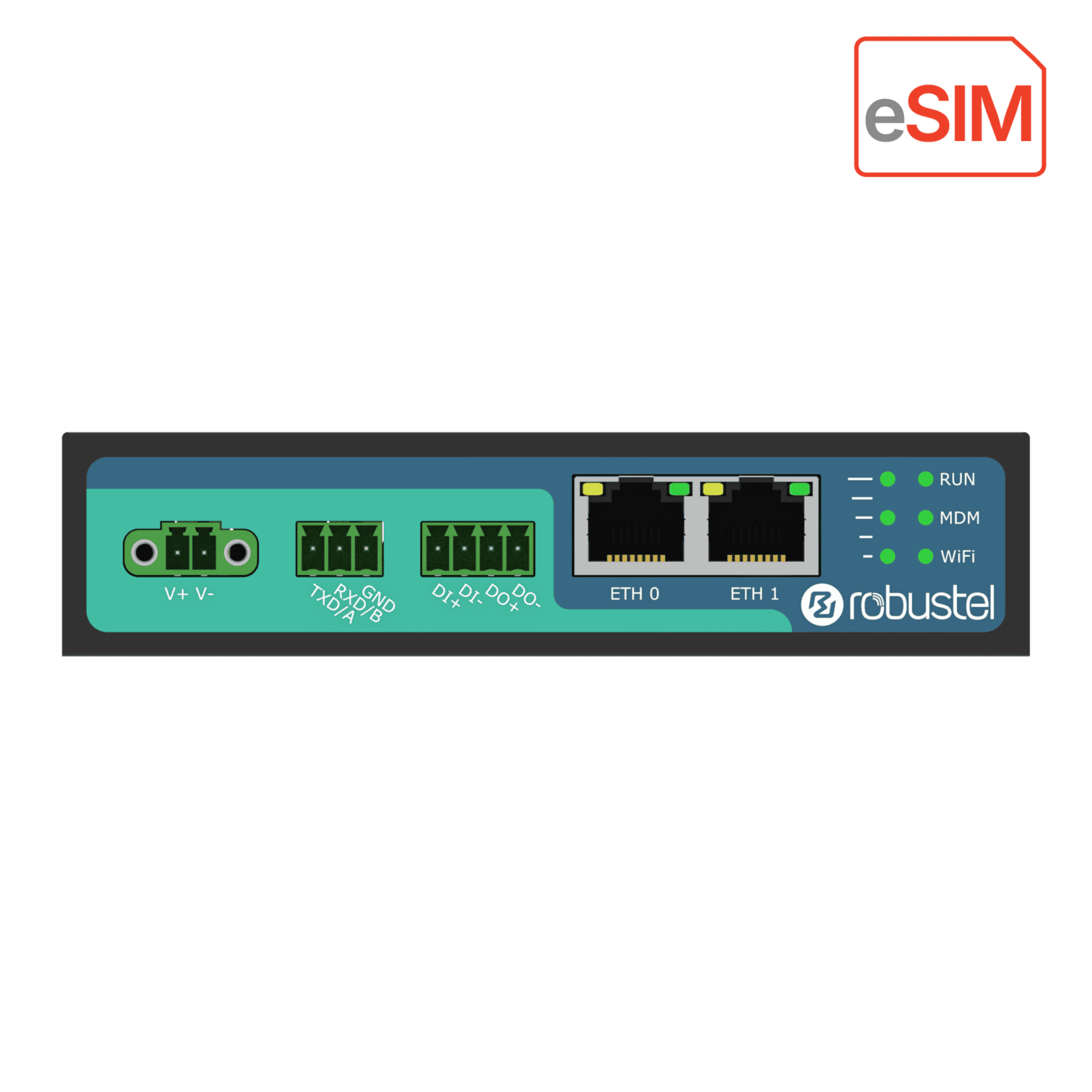

1x WAN, 1x LAN, 1x RS-485, 1x RS-232, 1x DI/DO
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device management enabled
R2010e Product Video
Example R2010e Use Cases
Industrial PLC Connectivity
Keep production running with reliable remote access to PLCs and HMIs. Diagnose faster, reduce site visits, maintain secure telemetry between plant cells and control rooms.
ATM Connectivity
Protect transactions and cardholder data with encrypted tunnels. Maintain uptime across carriers, allow central monitoring and updates, and meet compliance requirements.
Environmental Monitoring
Connect sensors and PLCs in remote or harsh environments using RS-485, digital I/O, and Modbus, rugged enough for edge deployments in agriculture and utilities.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

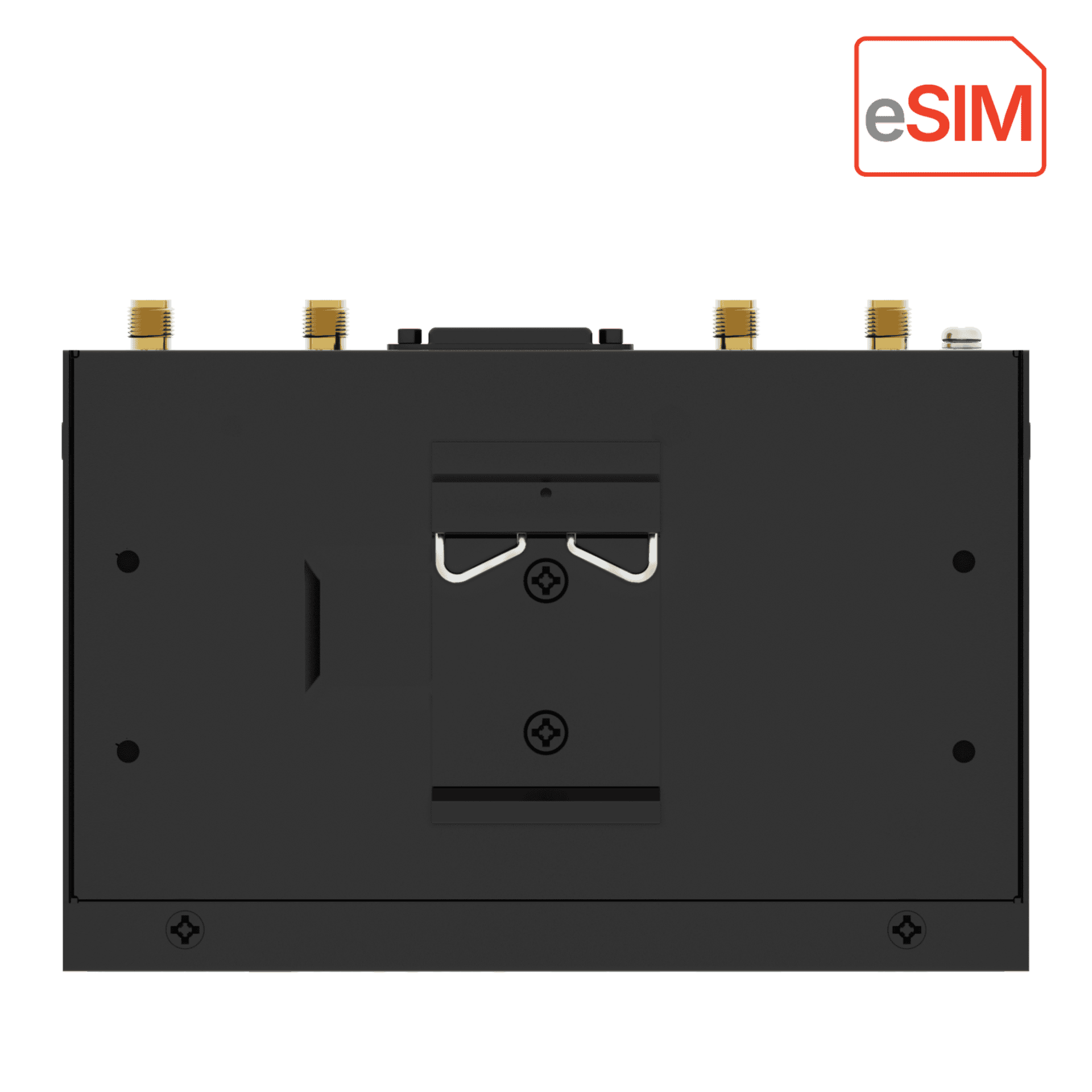

DIN Rail Mount

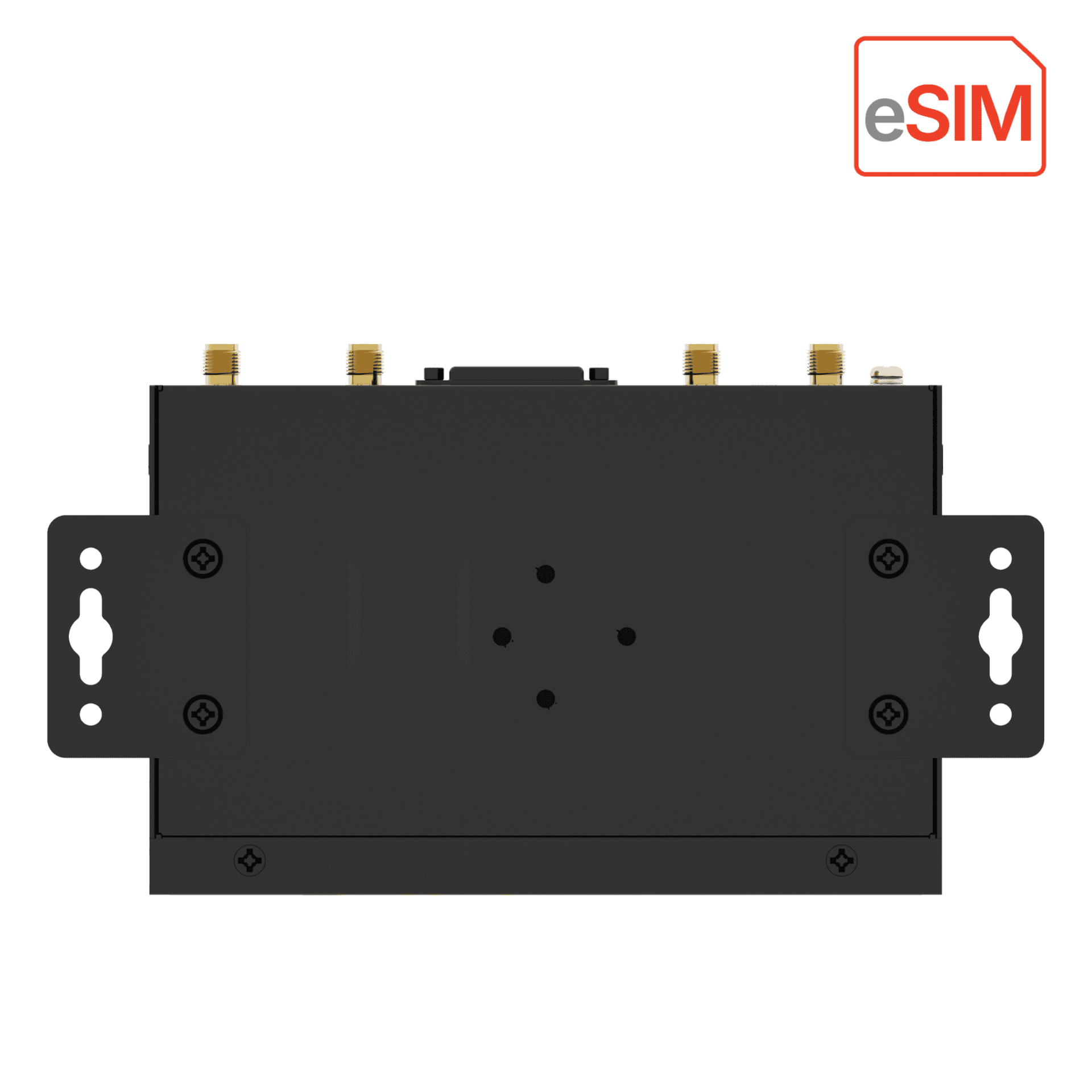

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
MIPS, 650 MHz |
|
RAM |
128MB |
|
Flash |
32MB |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|

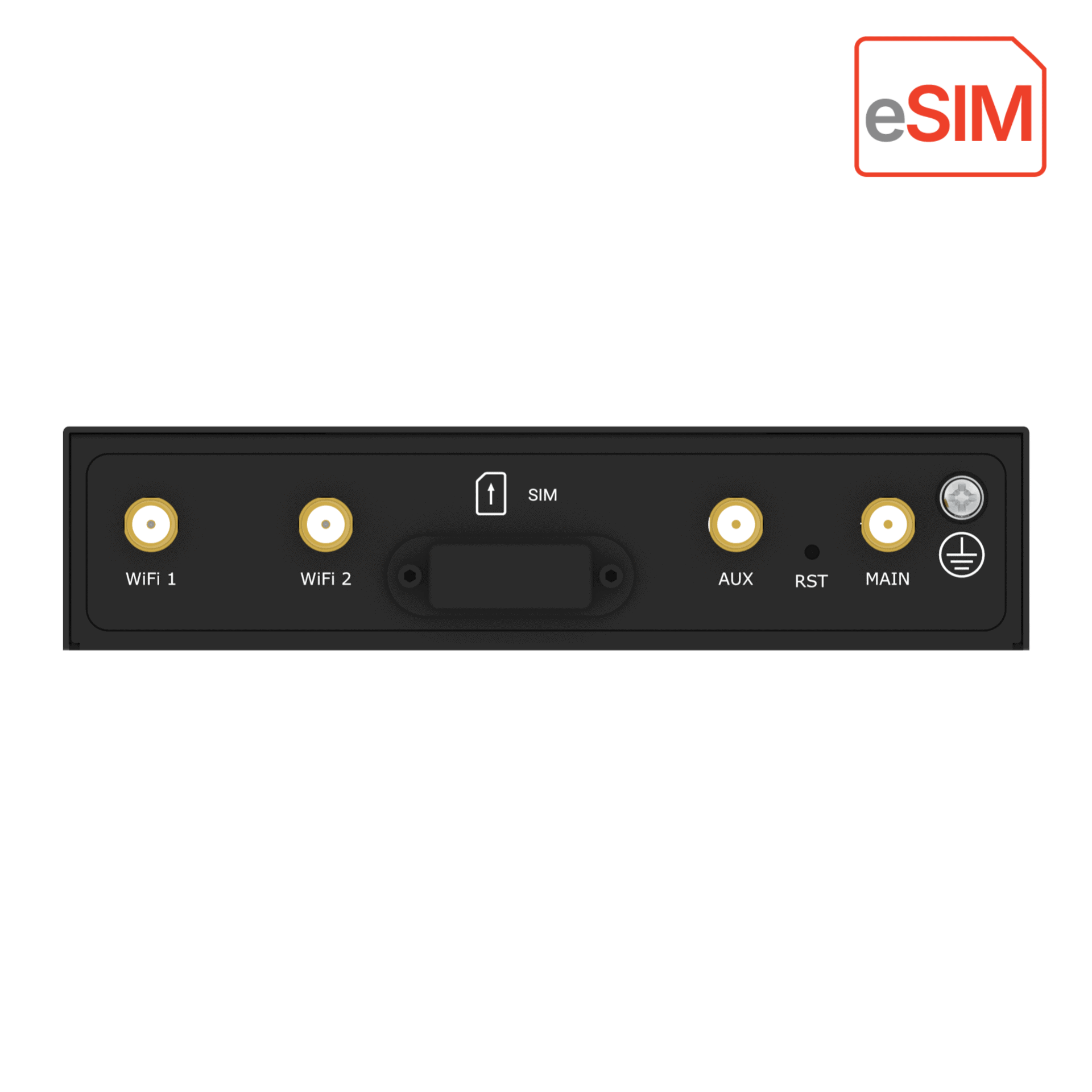

Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
1x eSIM/eUICC and 1 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
2 x 10/100 Mbps – 1 x WAN + 1 LAN or 2 x LAN |
|
Magnet Isolation Protection |
1.5 KV |
PoE In (Optional)
|
PoE Ports |
WAN1 |
|
PoE Standards |
802.3at PD |
Serial Port
|
Serial Ports |
1 x RS-232 or 1 x RS-485 (software configurable) |
|
Connector |
1 x 3-pin 3.5mm female socket |
|
Baud Rate |
300 bps – 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND |
Digital Input/Output
|
DI/DO Ports |
1 x DI + 1 x DO (wet contact) |
|
Connector |
1 x 4-pin 3.5 mm female socket |
|
Level |
3.5 ~ 30 V DC = HIGH, 0 ~ 1 V DC = LOW |
|
Absolute Maximum VDC |
30 V DC (DI/DO) |
|
Absolute Maximum ADC |
10 mA (DI/DO) |
|
Signal Definition |
DI+, DI-, DO+, DO- |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 b/g/n, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
64/128 AES, TKIP |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
3 x RSSI, 1 x RUN, 1 x MDM, 1 x Wi-Fi |
|
Watchdog |
Built-in |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5mm female socket with lock |
|
Input Voltage |
12/24 V DC, 9 ~ 36 V DC |
|
Power Consumption |
Idle: 1 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 350g |
|
Dimensions |
30 x 82 x 127 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-35 – +75 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
16MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R2010e |
Ordering Information Coming Soon |
Ordering Information Coming Soon |
|
Ordering Information Coming Soon |
NOTE:
1. For more information about regional & carrier specific variants please contact us
